Black Box Multipower Miniature Transceiver-Media Converter


Price:
Sale price$276.00

Description

This ultra-compact, plug-and-play converter offers multiple power options. Plus, the Industrial MultiPower Media Converter is designed for use in harsh industrial environments.

For extra versatility, you can power the Industrial Multipower Media Converter through the external AC power supply included with each converter, using 5-50-VDC terminal block power, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port, or through the optional rackmount PowerTray (LHC018A-AC-R2).

You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. For instance, you can connect a converter to power sourcing equipment (PSE) for PoE while also using AC adapter power, DC terminal block power, and USB bus power. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.

You can also connect a PSE switch to an uninterruptible power supply to ensure that the switch and each connected media converter always have power.

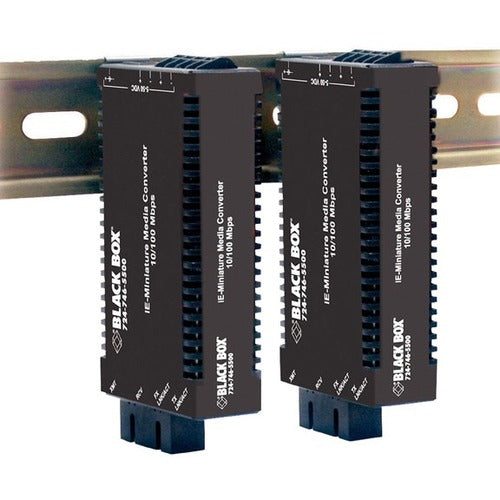

The converter comes with DIN clips, so you can attach it to a DIN rail. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available.


  • Compliant to EN62368
  • Extended temperature range when used with DC power: -13 to +158� F (-25 to +70° C)
  • Includes clips for mounting on DIN rails
