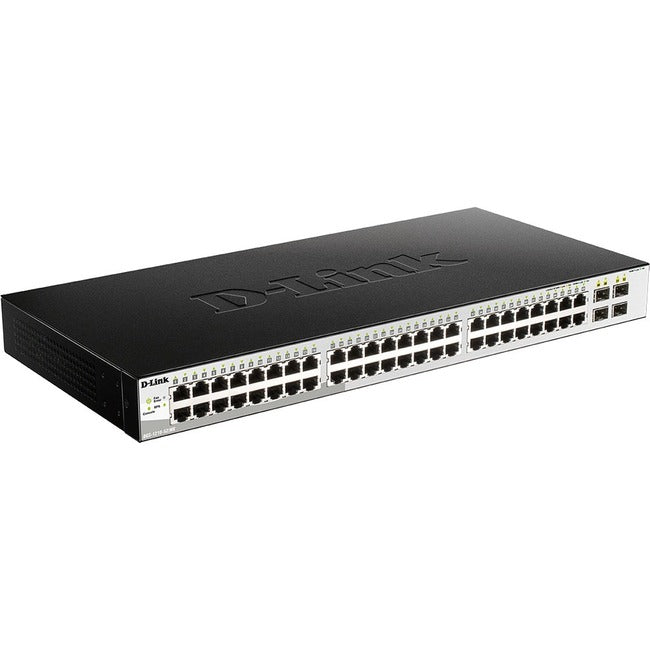

The DGS-1210/ME Series Metro Ethernet Switches are a family of Ethernet switches ideal for Metro Ethernet applications. These Metro Ethernet Switches provide 8/16/24/48 copper connections on upgraded Gigabit Ethernet ports, along with Gigabit SFP ports for improved uplink bandwidth. Surge protection ensures resilience against unexpected electrical spikes, while a full suite of security and management features keeps your network safe from internal and external threats.
The DGS-1210/ME Series all come with 10/100/1000 Mbps Ethernet downlink ports for superior Gigabit performance for your network. All models offer Gigabit SFP uplink ports and the DGS-1210-10P/ME , DGS-1210-28P/ME, DGS-1210-52P/ME, and DGS-1210-54MP/ME also offer Power-over-Ethernet (PoE) so network devices such as PoE IP cameras can be installed in remote locations without immediate access to power outlets. Simply use an Ethernet cable to connect to these devices at the deployment location and it can act as a conduit not only for data, but for power as well.
Efficient and Resilient
For mission critical environments, the DGS-1210/ME Series Metro Ethernet Switches support 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). STP allows the switch to be configured with a redundant backup bridge path, so transmission and reception of packets can be guaranteed in emergency situations. The switches also support 802.3ad link aggregation, which enables multiple ports to be grouped in parallel to form a single port, increasing bandwidth and redundancy for higher availability. These models feature 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Packet classification is based on TOS, DSCP, MAC, IPv4, VLAN ID, TCP/UDP port number, protocol type, or user-defined packet content for flexible configuration for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
DGS-1210/ME Series Metro Ethernet Switches support 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control over the network. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also to define the port number to enhance user access control. The built in D-Link Safeguard Engine™ protects the CPU from broadcast/multicast/unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
A web-based GUI provides a user-friendly interface and easy management, and DHCP auto-configuration gives administrators enhanced management features, allowing them to save configuration presets to a TFTP server. Individual switches can then retrieve their IP addresses from the server and load the preset configuration. Support for Link Layer Discovery Protocol (LLDP) allows a network device to advertise its identity and capabilities on the local network, which helps businesses better manage their network topology. Also, each port on these switches supports a cable diagnostic feature that helps detect cable related problems such as length or cable functionality issues, so the administrator can quickly identify and fix this problem.
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
