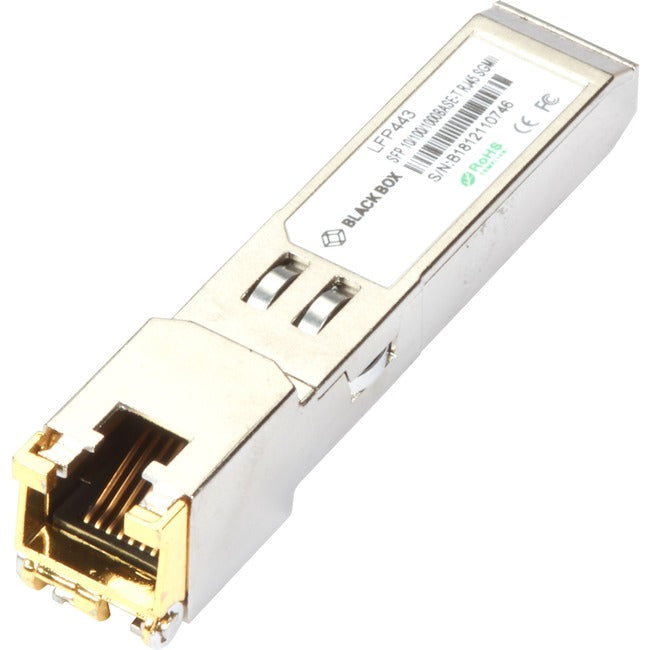

Black Box SFP (mini-GBIC) Module


Price:
Sale price$73.00

Description

10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. 10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded).


  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Low power dissipation(1.05W typical)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Case operating temperature: Commercial: 0°C to +70°C
  • Extended: -10°C to +80°C
  • Industrial: -40°C to +85°C
