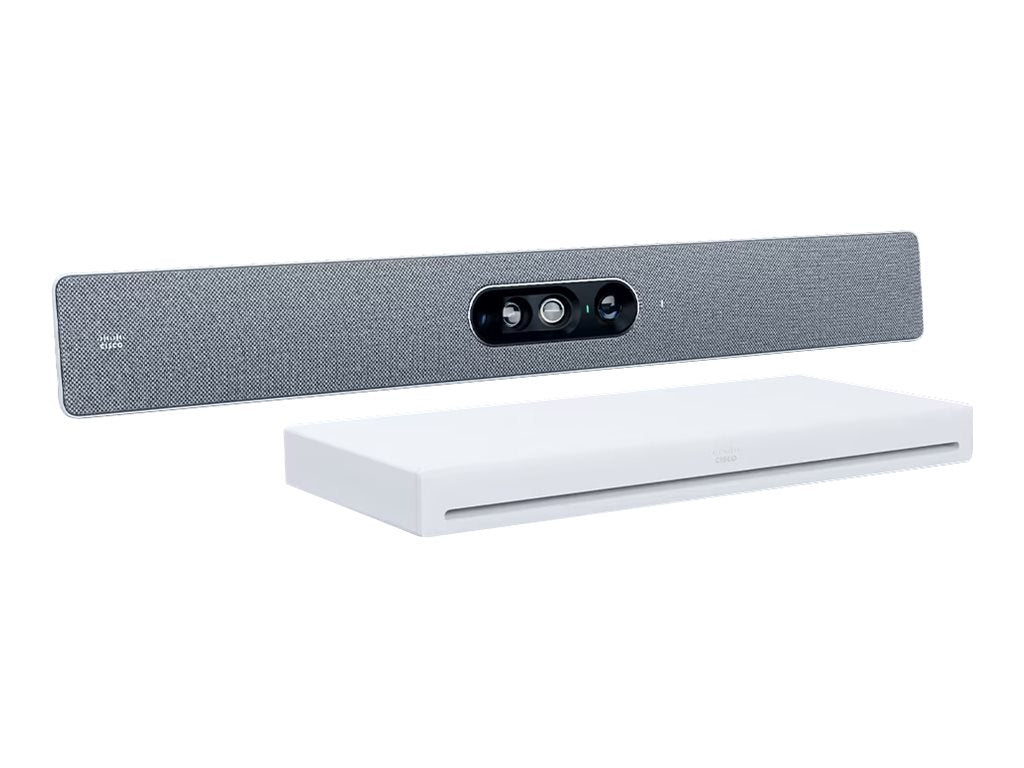

Cisco Webex Room Kit EQ - Video Conferencing Kit - CS-KIT-EQ-K9


Price:
Sale price$14,400.00

Description

  • Product Description: Cisco Webex Room Kit EQ - video conferencing kit
    Device Type: Video conferencing kit
    Kit Content: Cisco Webex Codec EQ, Cisco Webex Quad Camera
    VoIP Protocols: H.323, SIP
    Codec: H.264, H.265, H.263, G.711, G.722, G.722.1, G.729, AAC-LD, Opus
    Digital Signaling Protocol: H.460.18, H.460.19, H.323, BFCP, SIP
    Data Compression Protocol: H.264, H.263, G.711, G.722, G.722.1, G.729
    Features: DTMF decoding
    Video Input: Digital video camera - HDMI
    Audio Input: 8-microphone array
    Audio Output: Speaker(s)
    Networking: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
    Power: AC 100-240 V (50/60 Hz)
    Software Certification: Certified for Microsoft Teams Rooms
    Manufacturer Warranty: 90-day warranty
  • General
    Device Type: Video conferencing kit
    Kit Content: Cisco Webex Codec EQ, Cisco Webex Quad Camera
    VoIP Protocols: H.323, SIP
    Voice Codecs: G.711, G.722, G.722.1, G.729, AAC-LD, Opus
    Video Codecs: H.264, H.265, H.263
    Quality of Service: IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
    IP Address Assignment: DHCP
    Security: IEEE 802.1X, H.235 v3
    Network Protocols: HTTP, HTTPS, DNS, NTP
    Dimensions & Weight Details: Camera - Width 37.4 in Depth 4.1 in Height 4.7 in Weight 10.6 lbs ¦ Codec - Width 18.6 in Depth 8 in Height 1.7 in Weight 5.1 lbs
    Enclosure Color: First light
  • Modem
    Digital Signaling Protocol: H.460.18, H.460.19, H.323, BFCP, SIP
    Data Compression Protocol: H.264, H.263, G.711, G.722, G.722.1, G.729
    Features: DTMF decoding
  • Video Input
    Type: Digital video camera (color) - external
    Interface Type: HDMI
    Digital Video Capture Resolution: 5056 x 3888, 1920 x 1080
    Video Modes: 5K/60p
    Digital Zoom: 5
    Features: AI-powered, 4 x 20 megapixels image sensor, 1/1.7 CMOS image sensor type, 60 frame per second, F 2.0 lens aperture, 83° horizontal field of view (wide), 50° horizontal field of view (tele), automatic group framing, speaker tracking, automatic people framing, Auto Focus, auto white balance, automatic brightness adjustment, focus distance 1 m to infinity, Acoustic Echo Cancellation (AEC), frames mode, group view mode, speaker view mode, Miracast connectivity
  • Audio Input
    Type: 8-microphone array - integrated
  • Audio Output
    Type: Speaker(s)
    Frequency Response: 100 - 20000 Hz
  • Networking
    Connectivity Technology: Wireless, wired
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
    Network / Transport Protocol: NTP, DHCP, DNS
    Features: Cisco Expressway technology, Wireless Screen Sharing, DNS support, Quality of Service (QoS), Network Timing Protocol (NTP), URI Dialing, Class of Service (CoS), Certificate Authority Proxy Function (CAPF), Locally Significant Certificates (LSC), Manufacturer-Installed Certificates (MIC), 2x2 MIMO technology, security slot (Kensington security lock compatible)
    Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, IEEE 802.3bt
  • Expansion / Connectivity
    Interfaces: 1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 1 x audio - output - RCA ¦ 4 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45
  • Miscellaneous
    Cables Included: 1 x network cable
    Mounting Kit: Included
    Included Accessories: Wall mount
    Software Certification: Certified for Microsoft Teams Rooms
    Compliant Standards: EDID compatible, CEC 2.0, Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, FCC, FCC 47 CFR Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, NRTL, RoHS, WEEE
  • Power
    Power Device: Power adapter - external
    Voltage Required: AC 100-240 V (50/60 Hz)
  • Manufacturer Warranty
    Service & Support: Limited warranty - 90 days ¦ Limited warranty - advance hardware replacement - 10 days
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 95 °F
    Humidity Range Operating: 10 - 90% RH
  • Special Feature
    COO: CHINA
    TAA compliance: No
  • UNSPSC Code
    UNSPSC Code: 45111902
