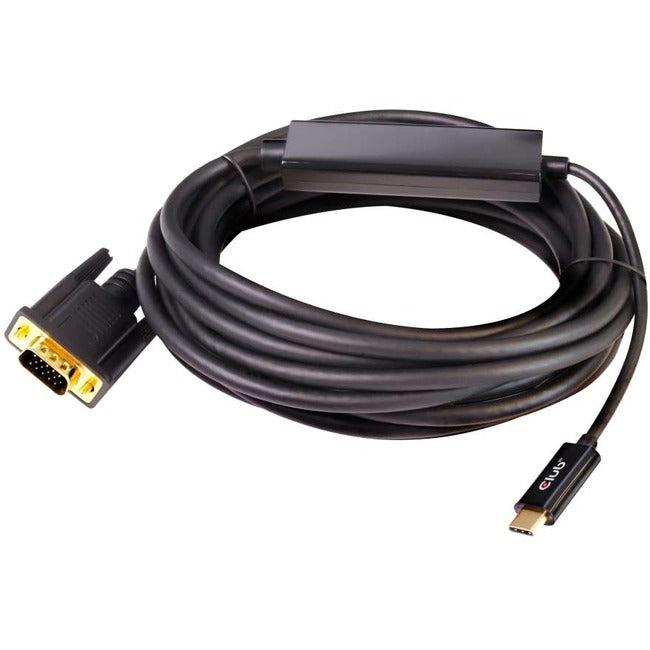

CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.
It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.
This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.
- Supports DP1.1 Specifications
- Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
- This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
- Supports Analog RGB Current source outputs
- Supports 3.3V VSYNC and HSYNC outputs
- Pixel Clock up to 240Mhz
- Triple 8 Bit Digital to Analog Converter (DAC)
- Supports 6, 8 Bits per color
- Supports RGB formats
