4K Ultra HD HDBaseT™ Extender over one CAT-5 with RS-232, 2-way IR, and Bi-Directional POL

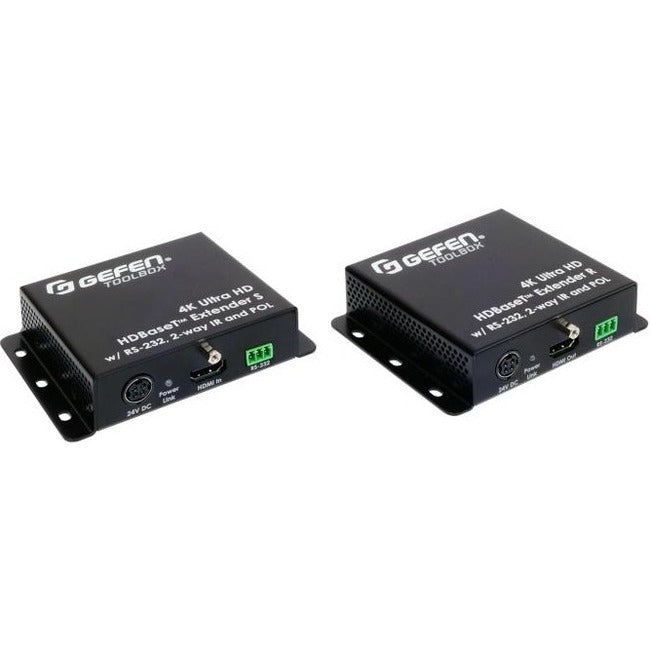

The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.
Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver.
IP & Serial Extension
This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.
Bi-Directional Power Over HDBaseT
Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display.
- Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A: 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters, 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters, 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters, 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters, 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
- HDMI Features Supported:, HDMI 2.0, HDCP 2.2 and 1.4, 12-bit Deep Color, LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master, Audio™ pass-through, 3DTV pass-through, CEC pass-through, Lip Sync pass-through
- IR extension from Sender to Receiver and from Receiver to Sender
- Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
- Uses Gefen's implementation of HDBaseT™ technology with enhanced features
- Advanced EDID Management
- Firmware updatable via RS-232
- Locking power connector
- Surface mountable
