Description

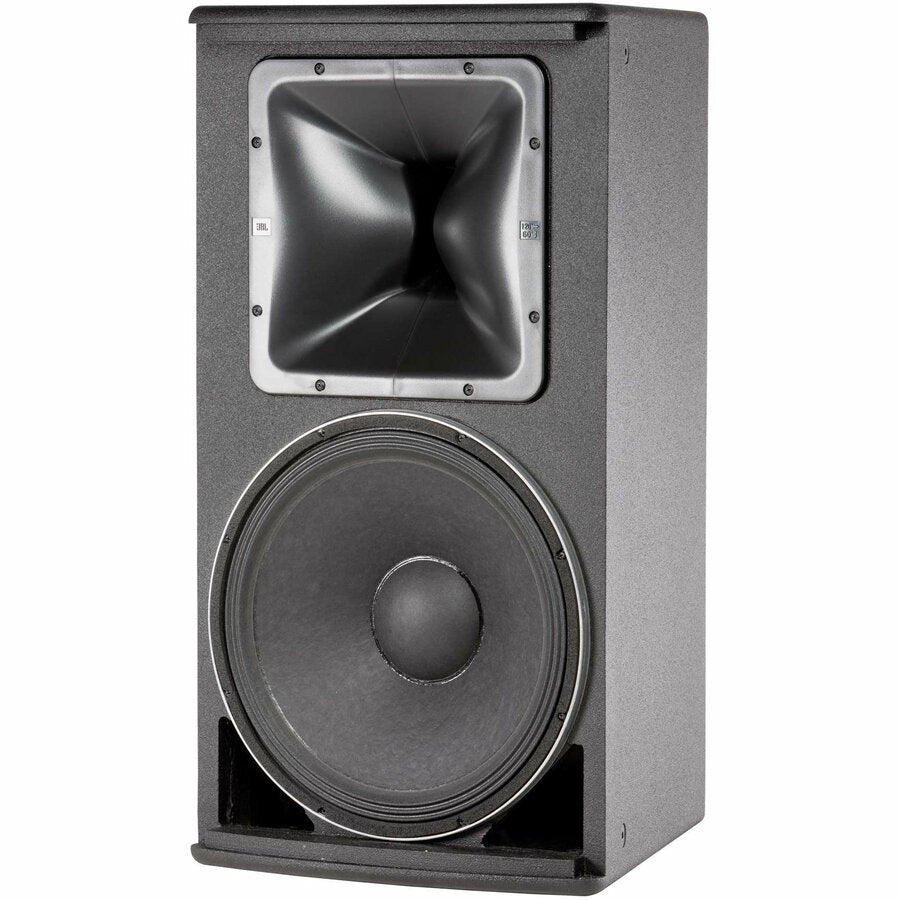

The AM7215/66 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Listen to deep lows and euphoric highs with a frequency range of sound from 40 Hz-18 kHz
- Experience body-shaking levels without any room-vibrating reverb or excessive heat output with 600 W RMS power
- 15" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers exceptional sound with 18 kHz maximum frequency response
- 1.40 kHz maximum crossover frequency for reliable and feasible transmission of sound
- 96 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- 30.8" height for maximum coverage efficiency and feasible operation
