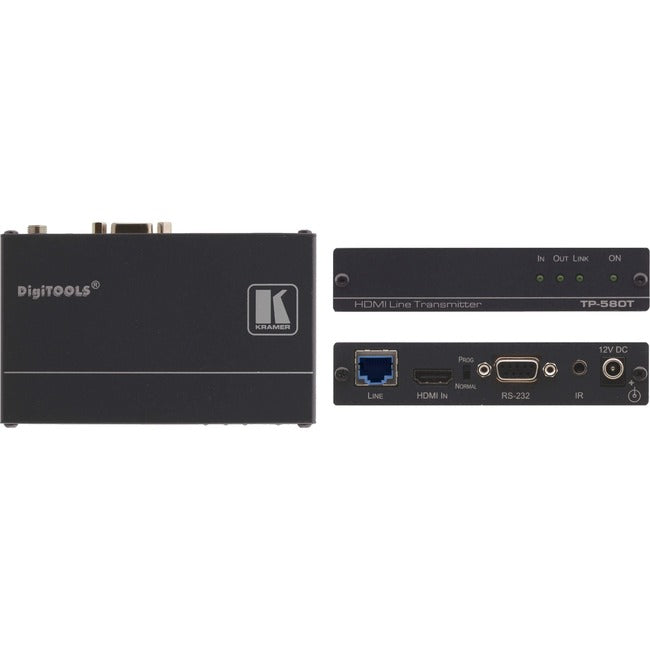

Kramer 4K UHD HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter


Price:
Sale price$203.00

Description

The TP-580T is a high-performance, HDBaseT twisted pair transmitter for 4K@60 UHD (4:2:0), 2Kx4K HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliance.
  • Resolution Support - 4K@60 UHD (4:2:0), 2Kx4K.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
  • System Range - 70m (230ft) at 2K, 40m (130ft) at 4K UHD resolutions.
  • Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • Indicators - Status LEDs for input, output, link and power.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.
