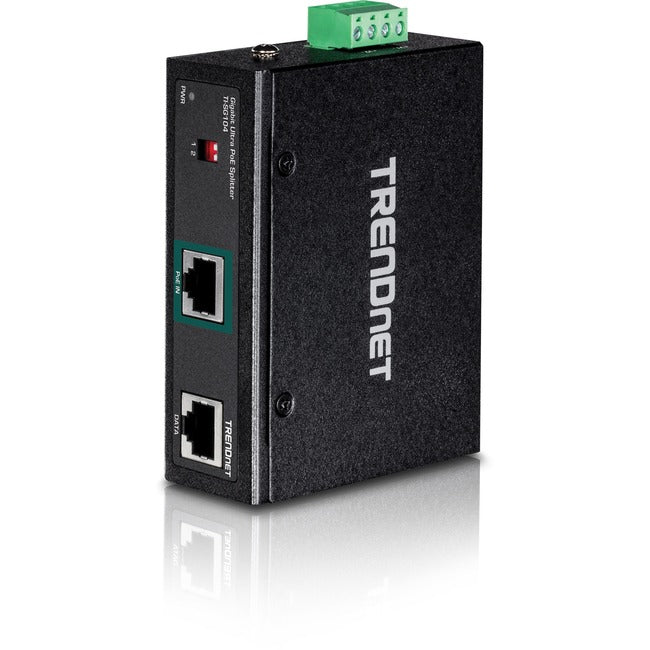

TRENDnet Industrial Gigabit UPoE Splitter, Dual DC Power Outputs, DIN-Rail or Wall-Mountable, Adjustable Voltage Output, TI-SG104


Price:
Sale price$73.00

Description

  • Power a non-PoE device up to 100m (328 ft.) away from PSE
  • Splits a gigabit PoE signal into separate power and data sources
  • A single Ultra PoE source can power up to two devices
  • Adjustable voltage output supports 12V, 16V, 24V or 48V devices
  • For best performance pair with UPoE switches or injectors
  • Save on installation and equipment cost
  • Full Duplex Gigabit speeds
  • IEEE 802.3bt compatible

TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility

UPoE Powered
No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).

Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements.

Wall Mountable
The UPoE splitter's wall mountable design accommodates most installation scenarios.

PACKAGE CONTENTS
TI-SG104
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit

More from the Manufacturer


  • Power a non-PoE device up to 100m (328 ft.) away from PSE
  • Splits a gigabit PoE signal into separate power and data sources
  • A single Ultra PoE source can power up to two devices
  • Adjustable voltage output supports 12V, 16V, 24V or 48V devices
  • For best performance pair with UPoE switches or injectors
  • Save on installation and equipment cost
  • Full Duplex Gigabit speeds
  • IEEE 802.3bt compatible
